ANGLE-50-SIDE-FIXED

Description:

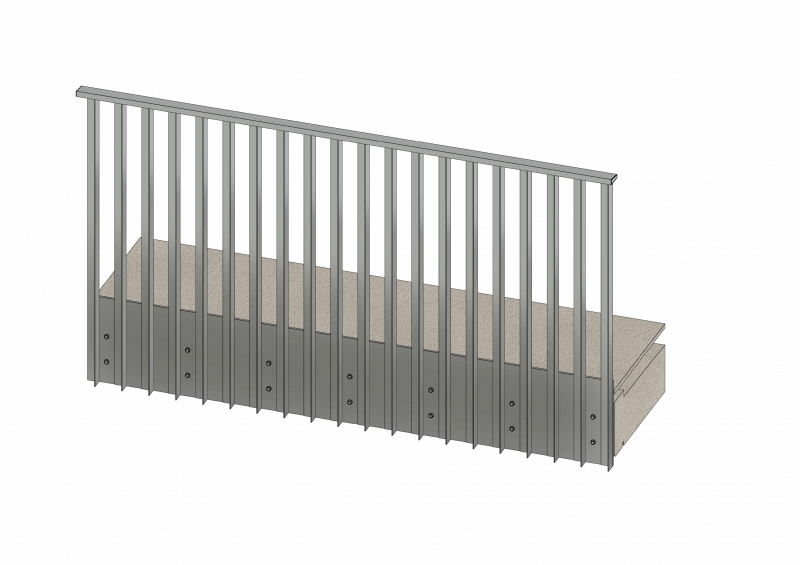

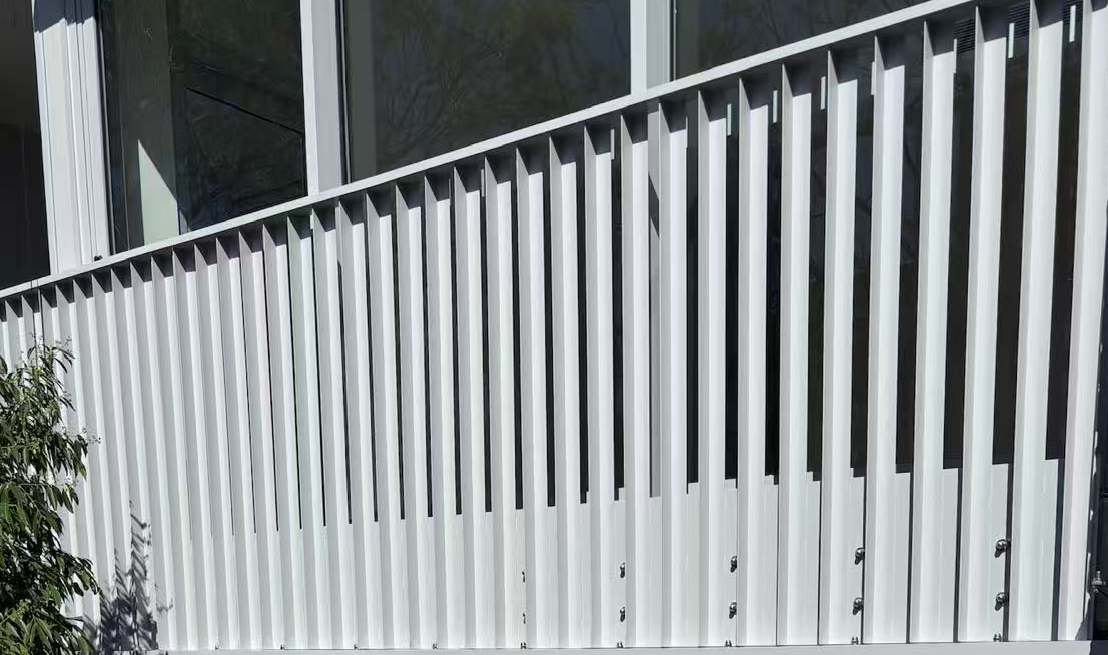

An architectural aluminium balustrade system designed with 50×50×3 mm aluminium angle slats at 120 mm centres, creating a bold and modern vertical rhythm. The slats are welded directly to the frame for precision alignment and a clean, seamless look. Featuring a 70×25×15×2 mm trapezoid aluminium handrail and a 400×10 mm continuous aluminium side-fixing plate secured with M10 SS dome nut anchors at 360 mm centres, the system is engineered from 6063-T6 aluminium to ensure durability, corrosion resistance, and long-term performance.

Distinctive Features:

• 50×50×3 mm aluminium angle slats @120 mm centres

• Welded slats for seamless alignment and clean finish

• Side-fixed system with 400×10 mm continuous aluminium plate

• Anchored using M10 SS dome nut anchors (100 mm embedment into slab @360 mm CTS)

• Handrail: 70×25×15×2 mm trapezoid aluminium profile

• Material: 6063-T6 structural aluminium alloy

• High corrosion resistance for coastal and urban projects

• Complies with AS/NZS 1170.1 Class C3 loading

Attention to Detail:

Every element is crafted for architectural precision. The welded aluminium angle slats provide straight, consistent lines, giving the balustrade a distinctive and refined appearance. The continuous fixing plate ensures stability while keeping the system visually streamlined. With a seamless weld finish, concealed anchors, and durable 6063-T6 aluminium, the system combines elegance with structural reliability, making it well-suited to both residential and commercial developments.
